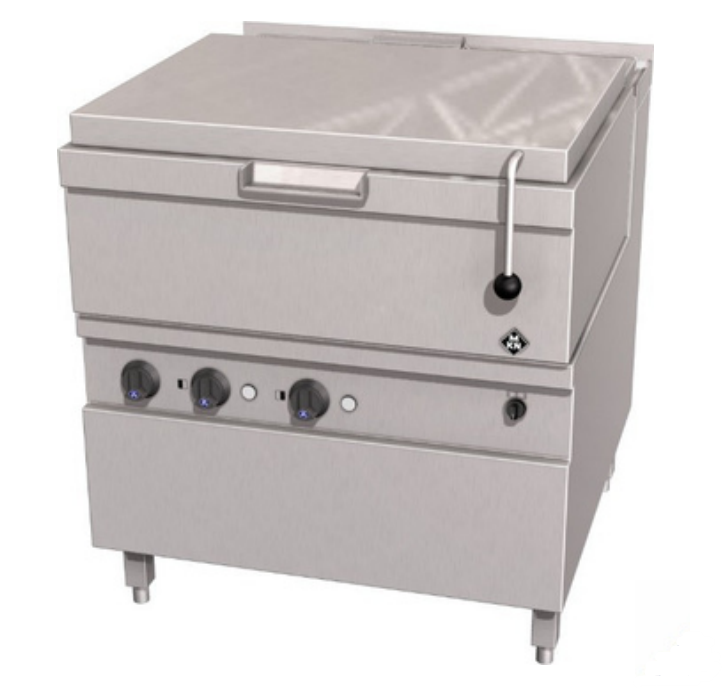

MKN 2021402C - Electric Bratt Pan 2/1 GN Motorized Tilting 80L



    Product Description:

    • Housing made completely of chrome nickel steel (1.4301) / (304).
    • Tightly welded top plate with lateral drain channels for easy cleaning.
    • Pan made of heat resistant steel as standard. SUPRA heating system-contact heating elements integrated into aluminium blocks ensure greater heating capacity and even distribution of heat, with short heating up times and longer service life.
    • Appliance with two separately adjustable heating zones.
    • Ideal pan positioning prevents spills and guarantees that the pan is fully emptied. Equipped for connection to a power optimization system with potential free contact as standard.
    • Double walled hinged lid.



    Product Specification:

    Width x Height x Depth (mm): 800 x 700 x 850
    Effective area: 1
    Dim.: effect. Area (mm): 720 x 190 x 535
    Nominal capacity (L): 77
    Nominal fill quantity (L): 62
    Connected load (elect.) (kW): 11
    Voltage (V) / EC: 415 3 phase AC
    Recommended fuses (A): 3 x 20
    Frequency range (Hz): 50
    Net weight (kg): 158
    Gross weight (kg): 167
    Heat emission latent (W): 4400
    Heat emission sensitive (W): 4950
    Type of protection: IPX5



    Download Data Sheet
