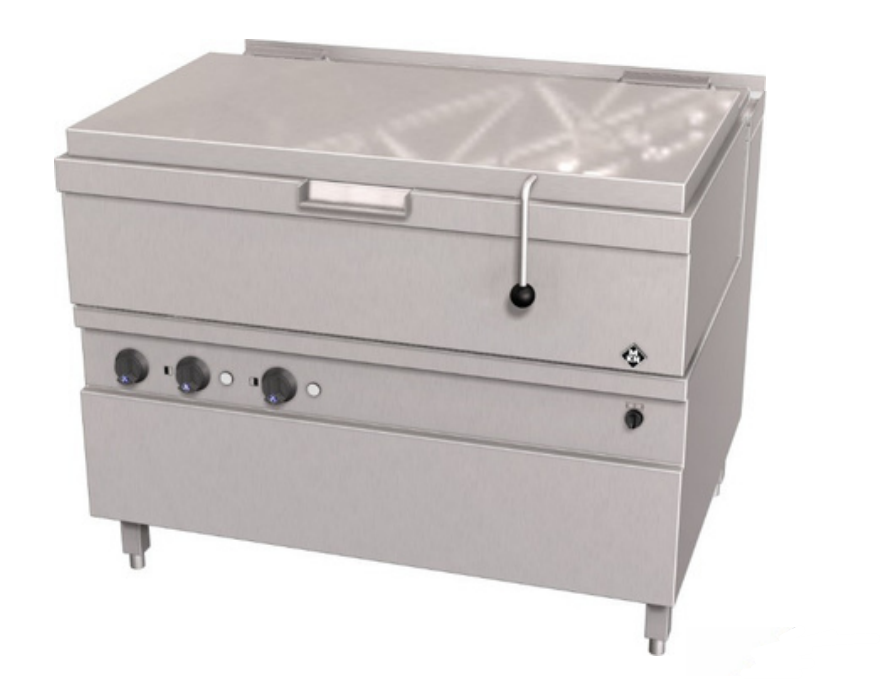

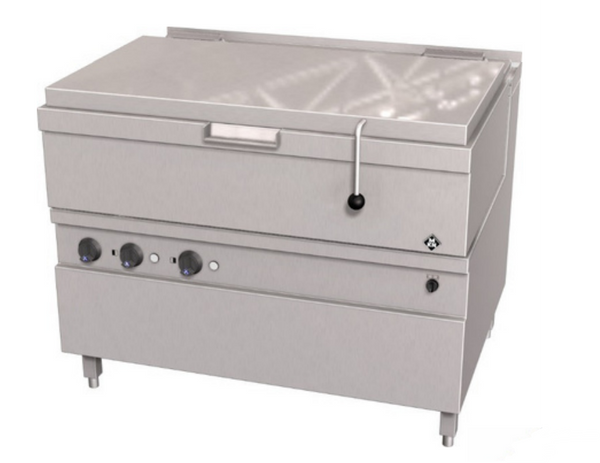

MKN 2021408C - Electric Bratt Pan 3/1 GN Motorized Tilting 111L



    Product Description:

    • Housing made completely of chrome nickel steel (1.4301) / (304).
    • Tightly welded top plate with lateral drain channels for easy cleaning.
    • Pan made of heat resistant steel as standard. SUPRA heating system-contact heating elements integrated into aluminium blocks ensure greater heating capacity and even distribution of heat, with short heating up times and longer service life.
    • Appliance with two separately adjustable heating zones.
    • Ideal pan positioning prevents spills and guarantees that the pan is fully emptied. Equipped for connection to a power optimization system with potential free contact as standard.
    • Double walled hinged lid.



    Product Specification:

    Width x Height x Depth (mm): 1100 x 700 x 850
    Effective area: 1
    Dim.: effect. Area (mm): 1020 x 190 x 535
    Nominal capacity (L): 111
    Nominal fill quantity (L): 89
    Connected load (elect.) (kW): 14.6
    Voltage (V) / EC: 415 3 phase AC
    Recommended fuses (A): 3 x 32
    Frequency range (Hz): 50
    Net weight (kg): 194
    Gross weight (kg): 237
    Heat emission latent (W): 5840
    Heat emission sensitive (W): 6570
    Type of protection: IPX5



    Download Data Sheet


    Product Video
    DESCRIPTION

    MKN 2021408C - Electric Bratt Pan 3/1 GN Motorized Tilting 111L



      Product Description:

      • Housing made completely of chrome nickel steel (1.4301) / (304).
      • Tightly welded top plate with lateral drain channels for easy cleaning.
      • Pan made of heat resistant steel as standard. SUPRA heating system-contact heating elements integrated into aluminium blocks ensure greater heating capacity and even distribution of heat, with short heating up times and longer service life.
      • Appliance with two separately adjustable heating zones.
      • Ideal pan positioning prevents spills and guarantees that the pan is fully emptied. Equipped for connection to a power optimization system with potential free contact as standard.
      • Double walled hinged lid.



      Product Specification:

      Width x Height x Depth (mm): 1100 x 700 x 850
      Effective area: 1
      Dim.: effect. Area (mm): 1020 x 190 x 535
      Nominal capacity (L): 111
      Nominal fill quantity (L): 89
      Connected load (elect.) (kW): 14.6
      Voltage (V) / EC: 415 3 phase AC
      Recommended fuses (A): 3 x 32
      Frequency range (Hz): 50
      Net weight (kg): 194
      Gross weight (kg): 237
      Heat emission latent (W): 5840
      Heat emission sensitive (W): 6570
      Type of protection: IPX5



      Download Data Sheet
