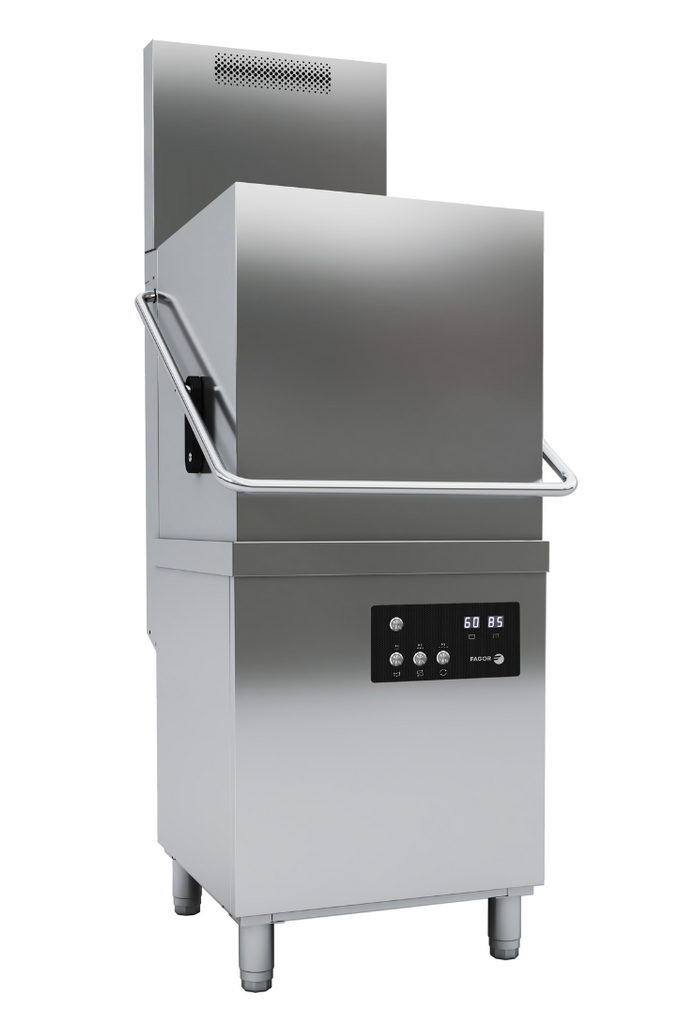

FED WHC-502TRCBD | Fagor INOVA Pass-through Dishwasher | with Drain Pump & Detergent Dispenser & Heat Recovery | Dishwasher

FED WHC-502TRCBD | Fagor INOVA Pass-through Dishwasher | with Drain Pump & Detergent Dispenser & Heat Recovery | Dishwasher

  • SKU: WHC-502TRCBD
$14,490.00
+ GST
In stock
Shipping calculated at checkout.

From $28.90 / day

Zip it from $10/week

BA2DFC13-CC75-4599-B5DD-E183A5817651 PRICE GUARANTEE MATCH
Ask a Question About This Product chat now ...
  • Barcode:

ESTIMATE SHIPPING AND TAX

Enter your destination to get a shipping estimate

Fagor iNova Heated Recovery Pass-Through Dishwasher



Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser



Key Features

  • Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
  • Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
  • Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
  • No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
  • Hourly production: 40 baskets/ hour
  • Clearance (max ware height): 450mm
  • Electronic control
  • Wash cycles: 90-120-180-480
  • Double rotating wash and rinse systems, made of AISI-304 stainless steel
  • Wash pump, 750W each
  • Drain pump: 100W drainage cycle
  • Tank with 3 kW heating power
  • Tank capacity: 33 litres
  • Water consumption: 2.2 litres/cycle
  • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
  • Two-digit LED displays
  • Hydraulic rinse aid dispenser
  • Dual-flow wash pump with soft-start
  • Double-stage filtration system
  • Dual-flow wash pumps
  • A magnetic micro switch to stop the cycle in case of accidental opening of hood
  • Adjustable legs
  • Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
  • Watermark approved
  • Can be converted to single phase
  • Precision of working temperatures
  • Temperature control by electronic probes
  • Configurable control
  • i-ERROR DIAGNOSIS: Error identification on screen
  • Basket: 500x500
  • Drain pump



Product Specification:

Product Condition New
New Product Yes
Net Weight (Kg) 117
Width (mm) 630
Depth (mm) 750
Height (mm) 1975
Packing Width (mm) 765
Packing Depth (mm) 905
Packing Height (mm) 1770
Power 415V, 9.75kW/3~N
Warranty 2 Years Parts and Labour Warranty





Download Specification

Product Video
DESCRIPTION

Fagor iNova Heated Recovery Pass-Through Dishwasher



Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser



Key Features

  • Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
  • Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
  • Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
  • No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
  • Hourly production: 40 baskets/ hour
  • Clearance (max ware height): 450mm
  • Electronic control
  • Wash cycles: 90-120-180-480
  • Double rotating wash and rinse systems, made of AISI-304 stainless steel
  • Wash pump, 750W each
  • Drain pump: 100W drainage cycle
  • Tank with 3 kW heating power
  • Tank capacity: 33 litres
  • Water consumption: 2.2 litres/cycle
  • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
  • Two-digit LED displays
  • Hydraulic rinse aid dispenser
  • Dual-flow wash pump with soft-start
  • Double-stage filtration system
  • Dual-flow wash pumps
  • A magnetic micro switch to stop the cycle in case of accidental opening of hood
  • Adjustable legs
  • Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
  • Watermark approved
  • Can be converted to single phase
  • Precision of working temperatures
  • Temperature control by electronic probes
  • Configurable control
  • i-ERROR DIAGNOSIS: Error identification on screen
  • Basket: 500x500
  • Drain pump



Product Specification:

Product Condition New
New Product Yes
Net Weight (Kg) 117
Width (mm) 630
Depth (mm) 750
Height (mm) 1975
Packing Width (mm) 765
Packing Depth (mm) 905
Packing Height (mm) 1770
Power 415V, 9.75kW/3~N
Warranty 2 Years Parts and Labour Warranty





Download Specification
