ECOMAXPLUSF515L-D DISHWASHER

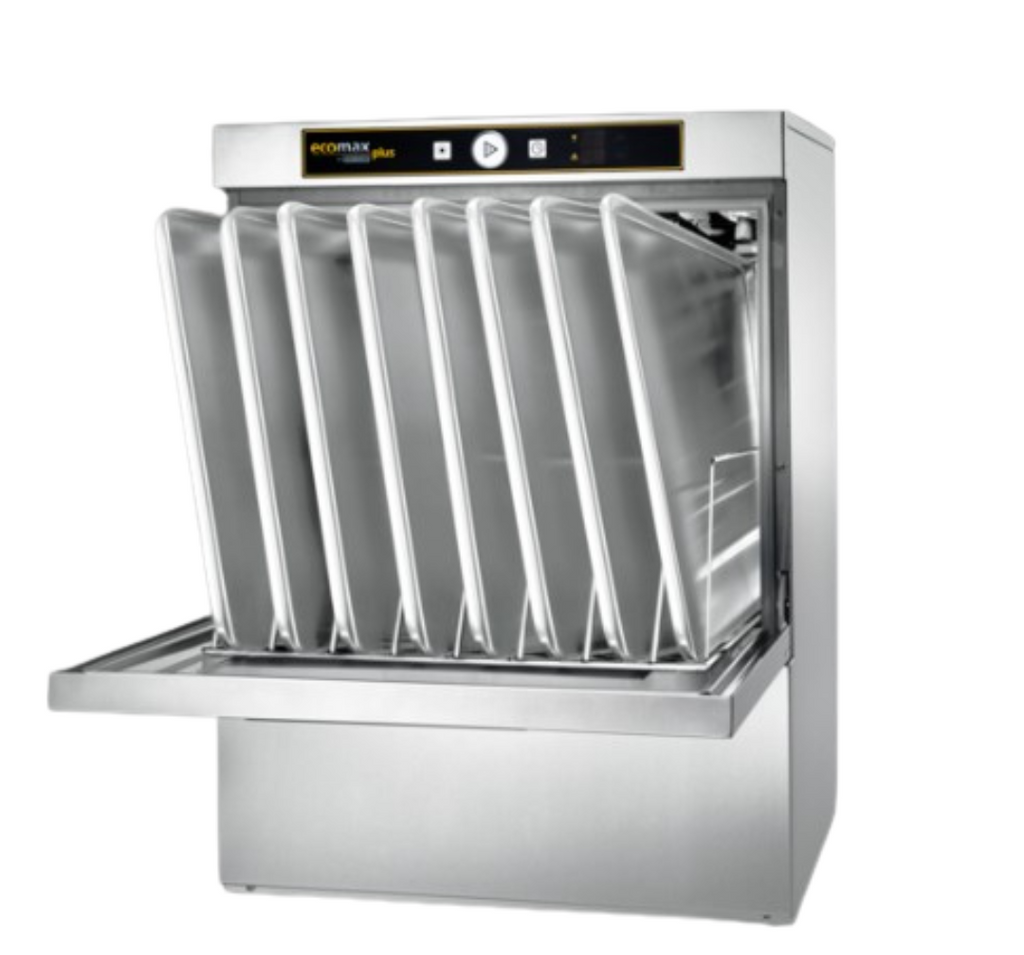

Dishwasher with extra large wash chamber suitable to wash trays of 600 x 400 mm.

Basic model incl. detergent & rinse aid dispensers, drain pump and rinse pressure pump - 240V/50Hz/1 - 15amps

Product Description/ Features:

• Single-button control with digital temperature indication
• Flat surface of control panel
• 3 selectable wash cycles
• Special hygiene programme for hygienic cleanliness
• Additional cutlery and glasswashing cycle
• Bottle washing program (with the optional bottle washing system)
• Rotating top and bottom wash system to distribute the wash water evenly over the dishes
• Indented nozzles prevent blocking
• Thermostop-function for guaranteed rinse temperatures
• Stainless steel rinse arm and housing
• Removal of rinse arms without any tools
• Easy access to all parts
• Refill signal monitors fill level of external chemical containers with optional suction lances

PLUS Features

1. Extra large wash chamber suitable to wash trays of 600 x 400 mm
2. Deep-drawn wash tank
3. Double-walled housing and heat insulated front door
4. Tank strainer, coarse filter and pump suction casing
5. Door damping control
6. Loading height above average: 425 mm, for easy loading of large plates
7. Fully equipped with detergent and rinse aid dispenser, rinse pressure pump and drain pump
8. Bottle washing programme for the hygienic cleaning of bottles with optional bottle washing system, consisting of spray attachment, wire attachment and bottle rack


Product Specification :

STANDARD EQUIPMENT

• Plate rack P-18-12
• Universal flat rack B-00-07
• Plastic cutlery rack with 4 boxes 01-246175-001
• Heater with thermostat control
• Electric cable, flexible water supply hose and drain hose
• Rear panelling

1. Cycle times*:  60/120/180 sec
2. Capacity per hour* :  up to 60 racks
3. Wash/rinse temperature : approx - 60° C / min. 82° C
4. Tank capacity : 10.6 l
5. Fresh water consumption/rack  : 2.3 l
6. Wash pump :  0.6 kw
7. Heating booster/tank :  2.1 (6.2**) kw / 0.8 kw
8. Total loading : 2.9 (7.7**) kw
9. Rated voltage : 240V/50Hz/1 - 15amp (Opt - 415V/50Hz/3/N add.cost)
10. Width/Depth/Height : 600/600/825 mm
11. Loading height : 425 mm Rack size 500 x 500 mm

Required site water pressure : 0.8 to 6 bar (80-600 kPa)

* hot water connection **with 240V/50Hz/1

 ***Warranty: 12 months
