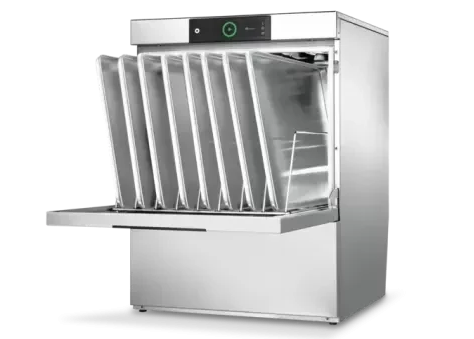

FXL-90C

PROFI LARGE CHAMBER DISHWASHER

In the hospitality industry, manual polishing takes a lot of time, as each piece of cutlery is individually cleaned of residues. This time-consuming polishing process is now
a thing of the past, because with the new, patent-pending CUTLERY PREMIUM feature,

HOBART has managed to integrate this function into a dishwasher.

Product Descriptions:

• Front door glass and dishwasher with deeper wash chamber and optional double rack system
• Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h
• Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks)
• 4 wash cycles - 90, 180, 360 (fill & dump) seconds plus Basic Clean 360 seconds
• Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
• Automatic self-cleaning programme
• Smooth counterbalanced door with closing mechanism
• Multi-setting: easy switchable from 415 V to 240 V on site
• Ready to install - completely equipped: fill / drain hose, power cord (240 plug & lead), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
• Tank, frame, rinse arm and panels are stainless steel 1.4301
• Integrated WiFi module
• 1 plate rack P-18-12
• 1 insert for sheets 324660
• 1 cutlery box CB1

MODEL : FXL-90C

Technical data

Cycle Times* 4 wash cycles - 90, 180, 360 (fill & dump) seconds plus Basic Clean 360 seconds

Water Consumption 1.8 l/rack

Tank Capacity 10.6 L

Tank Heating 0.8 kW

Power Supply 240 / 50 / 1 (415/50/3+NPE)

Booster Loading - Standard 2.0 kW l 15 A

Booster Loading - Alternative 6.1 kW l 15 A (3phs)

Total Loading - Standard 2.6 kW l 15 A

Total Loading - Alternative 6.7 kW l 3 x 15 A

Wash Pump 0.5 kW l 350 l/min

Rack Size 500 x 500 mm

Loading Height 425 mm

Noise Level 59 dB (A)

Weight (gross / net) 70 / 60 kg

*Thermostop guarantees required temperatures with cold water and / or 240 V connection, the actual cycle times extend accordingly.

For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.

To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge (PURITY / PURITY EXTRA) or a reverse osmosis system HYDROLINE PURE.
