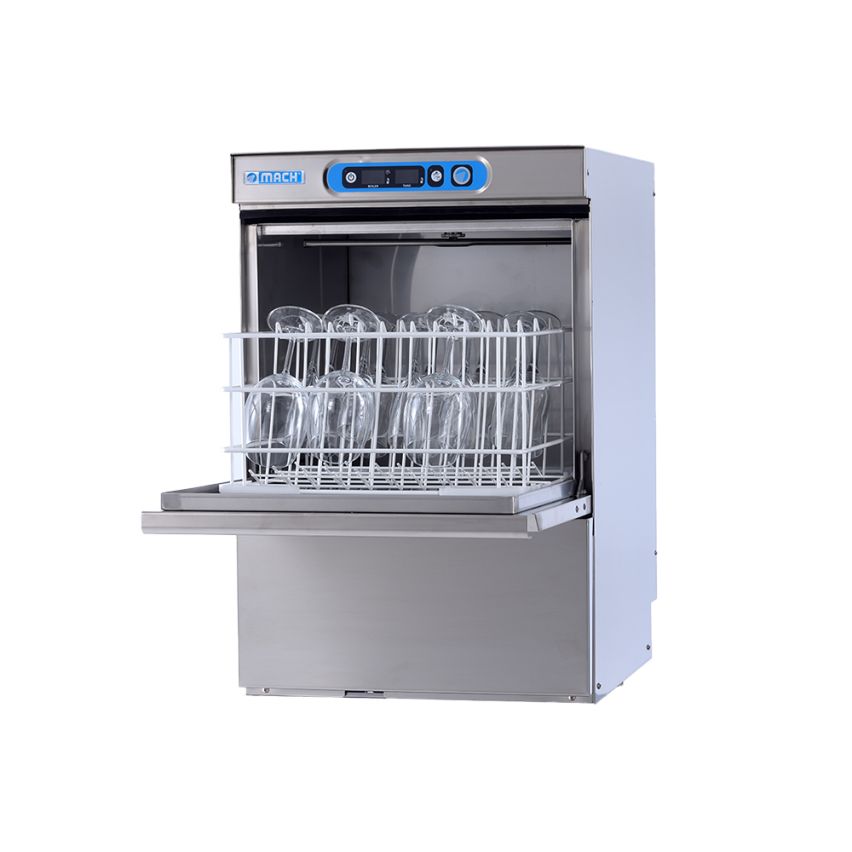

Mach Signature Line Undercounter Glasswasher | 400 x 400 Basket

Product Features:

• Constructed entirely from 100% AISI Stainless Steel with no plastic components. This machine delivers exceptional strength, the highest level of durability, and long-lasting performance, making it ideal for demanding environments.
• Full AISI304 stainless-steel components including armoured stainless steel elements, stainless steel boiler, filters, hinges, upstands, wash arms, rinse arms, plugs and jets.
• Double-wall fully insulated stainless steel construction providing enhanced thermal efficiency, sound insulation and best in class energy consumption.
• Double-walled, self-closing insulated front door ensures improved insulation and energy efficiency while maintaining convenience after each use
• Magnetic microswitch automatically cuts off the appliance's operation when the door is opened, ensuring safety during use.
• Independent stainless steel upper and lower washing and rinsing arms, which are easily removable for effortless cleaning and maintenance.
• The tank is constructed with rounded corners, ensuring easy cleaning and maintaining the highest hygiene standards.
• The boiler and tank are heated through thermostatically protected armored stainless steel heating elements, ensuring efficient heat exchange.
• Built-in insulated atmospheric rinse tank is constructed from AISI 304 stainless steel, providing best in class insulation and durability for optimal performance.
• Water levels are designed to sit below the tank filter line for improved health and safety. This makes them the ideal model for large restaurant chains and contract customers.
• Touch control panel features 5 preset wash cycle times (60-90-120-150-180 seconds) offering easy operation and the flexibility to select the ideal cycle for different cleaning needs.
• The displays show the current temperatures of both the boiler and tank, providing real-time visual monitoring.
• The display features a countdown of the washing cycle in minutes and seconds, providing real-time tracking of the remaining time for each cycle.
• Fully programable digital interface allows complete adjustment of wash and rinse timings aswell as special programs for reverse osmosis and other requirements. It also offers technical onboard diagnostics and error reporting to facilitate easy maintenance
• Outstanding wash results are guaranteed with a high-powered wash pump, ensuring thorough cleaning at 60ºC, followed by a hygienic rinse at 85ºC for optimal sanitation.
• Built-in drain pump ensures efficient drainage and prevents debris buildup, thanks to the machine's advanced filtration systems.
• Built-in secondary powerful rinse booster pump, constructed from stainless steel, guarantees optimal rinse pressure for superior cleaning performance.
• Built-in detergent and rinse aid pumps with easy dosage adjustments ensure precise and efficient use of cleaning agents.
• Built-in timed manual cold rinse quickly cools heated glasses and dishes. This function is available when the machine is connected to Cold Water. If the machine is connected to Hot Water, it will act as a secondary Hot Rinse.
• The self-cleaning cycle (CLN) automatically cleans the machine to the highest hygiene standards at the press of a button, ensuring safe handling and minimal effort.
• The system drains 2.5 liters of dirty water between wash and rinse phases, ensuring cleaner results and maintaining high hygiene with regular water changes.
• The washing chamber features a high 30.5 cm clearance, allowing for the accommodation of larger items and providing flexibility for various washing needs.
• Compatible with 40x40 cm or 14' x 17' basket

Product Specifications:

Model

GT 41.21AP

Voltage

230 Volts

Watts

3300 watts

Amperage

14.3 Amps

Plug Supplied

Yes

Plug Type

15 Amp

Tank capacity

12.5 Litre

Washing pump

300 watts

Rinse Pump

300 watts

Drain Pump

40 watts

Tank Heating element

1400 watts

Boiler Heating (supplied)

3000 watts

Boiler capacity

4.7 litre

Washing Power

720 to 2160 pc/hr

Water consumption

2.75 Litres per cycle

Clean Water discharge

2.5 Litres per cycle

Rinse Temp

82 °C

Wash temp

60 °C

Washing height

305mm

Basket Size

400 x 400mm or 14” x 17”

Cycle times

60-90-120-150-180 seconds

Noise level

< 70 dbA.

Width (mm)

470

Depth (mm)

545

Height (mm)

740

Warranty

2 years

Inclusions

2 x Baskets for Glasses 40cm x 40cm
1 x Saucer Insert
1 x Cutlery Holder
1 x Set of Stainless Steel Adjustable Legs

Download Sheet
