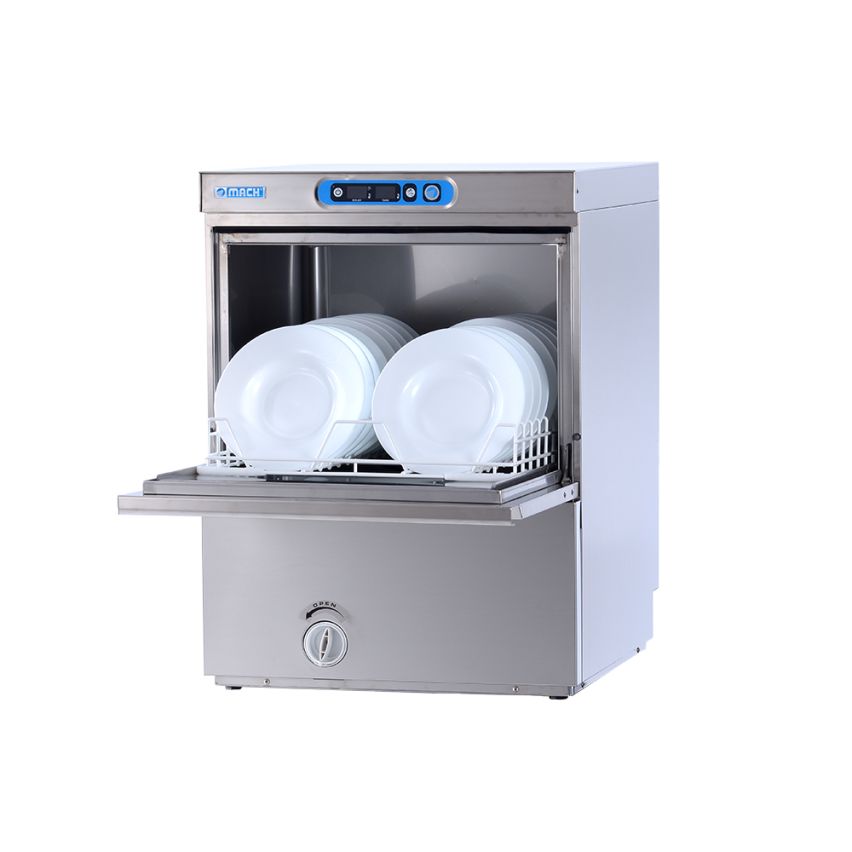

Mach Signature Line Undercounter Glasswasher and Dishwasher | 450x450 Basket

Product Features:

• Constructed entirely from 100% AISI Stainless Steel with no plastic components. This machine delivers exceptional strength, the highest level of durability, and long-lasting performance, making it ideal for demanding environments.
• Full AISI304 stainless-steel components including armoured stainless steel elements, stainless steel boiler, filters, hinges, upstands, wash arms, rinse arms, plugs and jets.
• Double-walled, self-closing insulated front door ensures improved insulation and energy efficiency while maintaining convenience after each use.
• Magnetic microswitch automatically cuts off the appliance's operation when the door is opened, ensuring safety during use.
• Independent stainless steel upper and lower washing and rinsing arms, which are easily removable for effortless cleaning and maintenance.
• The tank is constructed with rounded corners, ensuring easy cleaning and maintaining the highest hygiene standards.
• The full-width stainless steel wash tank filters are easy to remove, providing efficient drainage, best-in-class filtration, and complete access to the tank for thorough cleaning and maintaining hygiene.
• The boiler and tank are heated through thermostatically protected armored stainless steel heating elements, ensuring efficient heat exchange.
• The Drain Pump features front panel filter access to prevent unnecessary warranty issues and breakdowns. This allows easy removal of foreign material from the pump, providing an extra safeguard alongside the machine's filtration systems.
• Built-in insulated atmospheric rinse tank is constructed from AISI 304 stainless steel, providing best in class insulation and durability for optimal performance.
• Water levels are designed to sit below the tank filter line for improved health and safety. This makes them the ideal model for large restaurant chains and contract customers.
• Touch control panel features 5 preset wash cycle times (60-90-120-150-180 seconds) offering easy operation and the flexibility to select the ideal cycle for different cleaning needs.
• The displays show the current temperatures of both the boiler and tank, providing real-time visual monitoring.
• The display features a countdown of the washing cycle in minutes and seconds, providing real-time tracking of the remaining time for each cycle.
• Fully programable digital interface allows complete adjustment of wash and rinse timings aswell as special programs for reverse osmosis and other requirements. It also offers technical onboard diagnostics and error reporting to facilitate easy maintenance
• Outstanding wash results are guaranteed with a high-powered wash pump, ensuring thorough cleaning at 60ºC, followed by a hygienic rinse at 85ºC for optimal sanitation.
• Built-in drain pump with a filter ensures efficient drainage while preventing debris from clogging, maintaining optimal performance
• Built-in secondary powerful rinse booster pump, constructed from stainless steel, guarantees optimal rinse pressure for superior cleaning performance.
• Built-in detergent and rinse aid pumps with easy dosage adjustments ensure precise and efficient use of cleaning agents
• Built-in timed manual cold rinse quickly cools heated glasses and dishes. This function is available when the machine is connected to Cold Water. If the machine is connected to Hot Water, it will act as a secondary Hot Rinse.
• The self-cleaning cycle (CLN) automatically cleans the machine to the highest hygiene standards at the press of a button, ensuring safe handling and minimal effort.
• The system automatically drains 2.5 liters of dirty water between wash and rinse phases, ensuring cleaner results and maintaining high hygiene with regular water changes.
• The washing chamber features a high 33 cm clearance, allowing for the accommodation of larger items and providing flexibility for various washing needs.
• Compatible with 450 x 450mm basket

Product Specifications:

Model

DT 45.13AP

Voltage

230 Volts

Watts

3550 watts

Amperage

15 Amps

Plug Supplied

Yes

Plug Type

15 Amp

Tank capacity

17 Litres

Washing pump

550 watts

Rinse Pump

300 watts

Drain Pump

40 watts

Tank Heating element

3000 watts

Boiler Heating (supplied)

3000 watts

Boiler Heating (configurable)

4500 or 6000 watts

Boiler capacity

8 Litres

Washing Power

320 to 960 pc/hr

Water consumption

3.5 Litres per cycle

Clean Water discharge

2.5 Litres per cycle

Rinse Temp

82 °C

Wash temp

60 °C

Washing height

Glasses 330mm | Plates Ø320 mm

Basket Size

450 x 450mm

Cycle times

60-90-120-150-180 seconds

Noise level

< 70 dbA.

Width (mm)

510

Depth (mm)

600

Height (mm)

790

Warranty

2 years

Inclusions

1 x Basket for 16 Plates 450 x 450mm
1 x Flat Square Basket
2 x Cutlery Holder

Download Sheet
