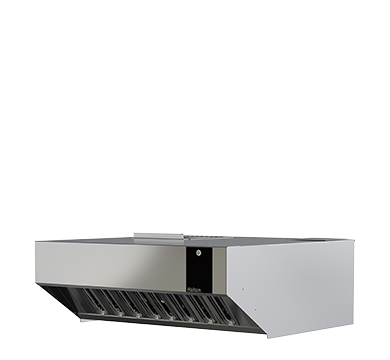

Turbofan VH35-30 Ventless Condensing Hood

Product Descriptions:

VH35-30

Unit shall be a Halton Ventless Condensing Hood, UL listed and UL EPH
classified. The unit shall have all stainless steel construction, include
3 stage filtration and incorporate a condensing heat exchanger. Unit
will feature an automatic 2 speed extraction fan with interlocked oven
operation, Unit shall be 220-240V and fitted with a 10A plug cordset.
Unit shall be provided with VHIK35 Installation Kit for connection and
fitment to Moffat Turbofan Convection Oven models E35D6-30,
E35T6-30.
VHIK35 Installation Kit
Installation Kit shall be provided with VH35 Ventless Condensing Hood.
Installation kit shall include:
Four 100mm oven feet and condensate collection pan and housing for
self-contained condensate collection.
Oven Rear shroud for protection of Interlock control harness and
condensate drain tube.
Oven to stand rear securing plate when oven is fitted on a Moffat
Turbofan SK35 Stand.

STANDARD FEATURES

• Removes need for installation Canopy or Ducted Oven Hood
• Complies with EPA202 Test Method for less than <5mg/
m3 grease laden effluent limits when fitted to Turbofan
Convection Oven models E35D, E35T
• UL197, NSF2/ANSI 2 certified
• 3 STAGE FILTERS
Grease baffle filters - removable for cleaning
Mesh particle filters - removable for cleaning
Charcoal odour filter - replaceable
• CONDENSING HEAT EXCHANGER
Oven vent condensing
Reduces heat emissions
• SELF CONTAINED CONDENSATE COLLECTION
Condensate drains to collection pan below oven (No
connection to waste drain required)
• REMOTE CONDENSATE DRAIN OPTION
Condensate drain tube can be taken to a permanent waste
drain (no manual emptying of condensate collection required)
• OVEN INTERLOCKED OPERATION
Oven will not operate if Hood not turned on.
Oven control alarm notification if Hood not operating.
Illuminated power switch on Hood.
• TWO AUTOMATIC 2 SPEED EXTRACTION FANS
Low fan speed during idle or cooking/baking process –
reduced noise/energy.
Automatic high fan speed 10 seconds before end of cook/
bake timer or program.
Automatic high speed fan extraction when oven door open.
• 220-240V plug in 10A cordset fitted
VHIK35 INSTALLATION KIT
• Supplied Standard with VH35 Hoods
Requires mechanical and electrical field assembly and
connection of VH35 Hood to E35D/E35T Ovens

ACCESSORIES – OPTIONAL (Not Included)
• # H11790 Replacement Charcoal Filter

Product Specifications:

Product Features

Ventless oven hood for E35D and E35T - removes need for installation Canopy or ducted oven hood
Single phase connection
Oven interlocked operation
Low speed automatic 2 speed extraction fan
3 stage filters: Grease baffle filter (removable), Mesh particle filter (removable), Charcoal odor filter (replaceable)
Condensing heat exchanger - reduces heat emissions
Self contained condensate collection pan - no connection to waste drain required
VHIK35 Installation Kit supplied (requires mechanical and electrical field assembly and connection of VH35 Hood to E35D/E35T Oven)

Dimensions

W: 918mm D: 1144mm H: 364mm
Volume: 0.6m³
Packed Weight: 89kg

Warranty: 24 Months Parts & Labour Warranty

Refer to https://m.moffat.com.au/moffat-warranty for full warranty conditions
